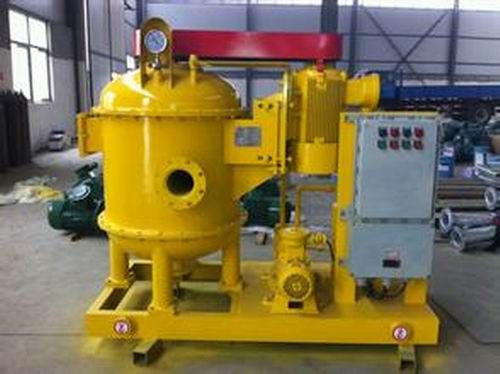

Application: During drilling operations, the gas carried by the drilling fluid in the well affects the performance of the mud and poses safety hazards. It also affects the service life of some equipment. Therefore, it is necessary to install a vacuum deaerator to concentrate and remove the gas in the mud.
- Email:Sales@machtec.cn
- Telephone:+86 22 60978800
Application:
The gas carried by the drilling fluid from the well during drilling operations affects the performance of the mud and poses safety hazards. It also affects the service life of some equipment. Therefore, it is necessary to install a vacuum deaerator to concentrate and remove the gas in the mud.
model | ZSCQ180 | ZSCQ240 | ZSCQ270 | ZSCQ360 |
maximum throughputm3/h | 180 | 240 | 270 | 360 |
efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
Vacuum degree Mpa | -0.02 ~ -0.04 | -0.02 ~ -0.04 | -0.02 ~ -0.04 | -0.02 ~ -0.04 |
Vacuum pump powerKW | 4 | 5.5 | 7.5 | 7.5 |
sizemm | 2373*1380*1577 | 2653*2000*2050 | 1955×1014×1683 | 2420×1510×1900 |
weightkg | 1200 | 1900 | 2150 | 2510 |
Explosion proof grade | Exd II BT 4 | |||
protection grade | IP 55 | |||
1. Large processing capacity, high separation efficiency, and wide applicability.
2. Eliminating corrosion reduces the cost of repair and maintenance.
3. The structural design is reasonable, compact, and has excellent performance.
4. The deaerator can also be used as a high-power mud mixer.
